Sunshine Solar 10A 12V volt Intelligent caravan Motorhome battery charger SC237
- Brand: Sunshine Solar
- Product Code: 237
- Availability: In Stock
- Ex Tax: £37.48

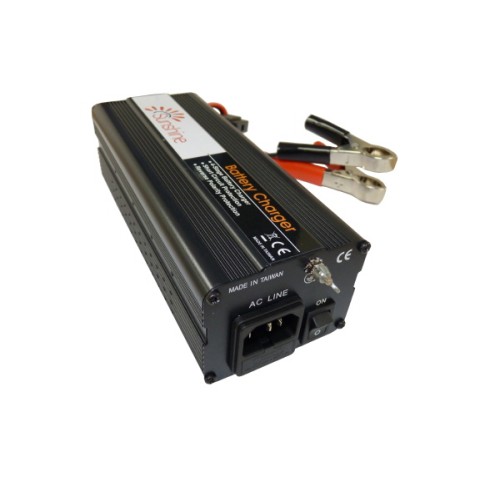

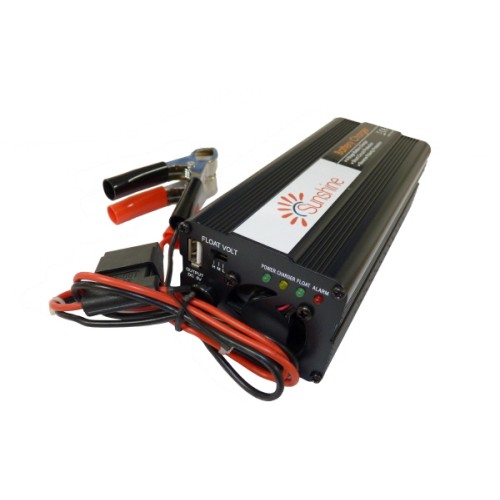

Pro Intelligent Battery Charger 10A - 12V
The Sunshine series of switching mode 3 stage (IUoU) chargers is designed for wet, sealed, calcium-calcium and gel batteries.
They have 3 selections of bulk (with absorption) charges and 3 float charge voltages making a total of 9 combinations of charging profiles. This is to ensure a safe, fast and complete charge as required by different types of batteries.
The also have a soft start bulk charge at about 50% of full rated current for when batteries have been depleted to less than 10.5V open circuit voltage this gives a gentle initial charge for deeply exhausted batteries.
The 10A Model LCHA10A has an auto operational fan. In addition to the standard short circuit, over temperature, reverse polarity protections, it has an OVP (output over-voltage protection) to ensure complete protection of your battery.
- 3 Stage (IUoU) Switching Mode Battery Charger
- 3 Selectable Bulk Absorption Charge Settings - for Gel, Wet or Calcium-Calcium lead acid batteries.
- 3 Selectable and independent Float Voltage Settings a total of 9 combinations of adaptive 3 Stage Charging profiles for all types of VRLA (sealed), wet lead acid, SLI (car) and deep cycled lead acid batteries.
- The Battery can be connected to the charger indefinitely.
- Automatic Soft Start Bulk Charge for a deeply exhausted battery to ensure safe and gentle charging of heavily depleted deep cycle and car batteries.
- LED indicators for Power, Charger, Float, Alarm.
- Output (Charge) Voltage Selector
- USB Output (DC 5V/2100 mA)
- Power On/Off Switch
- Automatic Fan
- Full Charger & Battery Protection
- Wide Input Tolerance for fluctuating mains voltage - operates well from 190V to 260V.

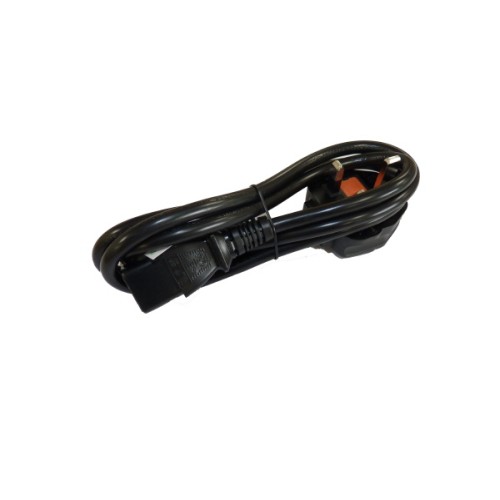

- AC cable fitted with UK plug
- DC Cable fitted with fuse & Croc Clips
- Optimal Battery Capacity Range: 30AH to 100AH
- Overload Protection
- Short Circuit Protection
- Reverse Polarity Protection (Circuit & Fuse)
- Over Temperature Protection
- OVP (Output Over-Voltage Protected)
- Auto operational Fan
Over voltage protection, protects the battery from excessive over voltage from the charger output.
PLEASE NOTE, WHEN USED IN A CARAVAN OR MOTOR HOME THESE CHARGERS ALWAYS NEED A LEISURE BATTERY IN CIRCUIT TO FUNCTION, THEY ARE CHARGERS AS OPPOSED TO COMBINED CHARGERS/POWER UNITS
Size mm (W x H x D): 72 x 58 x 170
