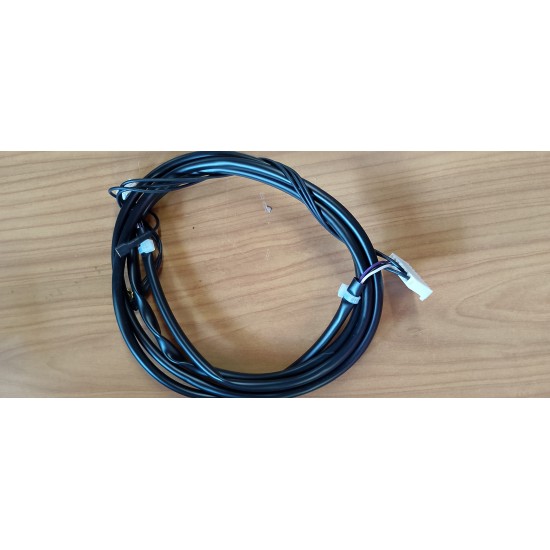

241279640 Connection Wiring loom Burner Control Device Electronic sc32A2

CONNECTION WIRING BURNER CONTROL DEVICE ELECTRONIC

• MPN 241279640
• for RM7655L RM7555 RM7855L RM7855L RM7605L RMT7651L RML8555 RMT7851L RMT7655L
• Note from Dometic

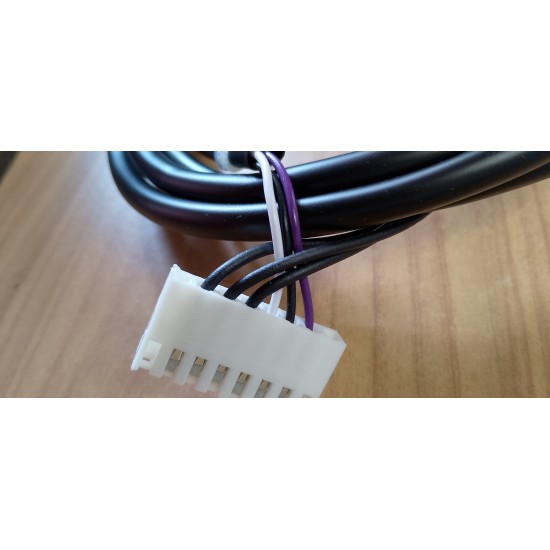

• The reason why there are only 6 wires in the cable shown is that there was a change a long time ago so that the earth connection from the P810 to the burner is no longer required. For this reason, only 6 cores are required in the connector instead of 7.
• • 3x connection to the electronics (+ / - / signal line)
• • 3x connection to the gas valve (2x + / 1x earth)

PLEASE NOTE: Although this product will fit the above models, to guarantee it is the correct part Please can you  let us have the product number of your fridge. You will find it on a plaque inside of the fridge. A long number  beginning 00921…… We can then check with Dometic this is the correct part you require.

• • Please call 01297553264

    SAFETY NOTICE: All products and parts must be installed by engineers who hold a valid certificate of competence. The installation must comply with the manufacturers instructions and local regulations. We cannot be held responsible if these instructions are not followed.
